Hot-rolled section steel for track shoes

Track link assembly is an important construction machinery parts,which is mainly used in excavators and bulldozers with its high quality and durability. Through Forging and casting technique, the main material of track steel is strength material 25MnB,25MnBM,35MnB,etc. We has developed and produced 6 series of 31 specifications of crawler steel products, product quality has been highly recognized by Sany Heavy Industry, Shantui, XCMG and other large construction machinery enterprises.

keywords:

hot-rolled section steel for track shoes

Product Categories

hot-rolled section steel for track shoes

Email：

lwguotai@163.com

WhatsApp：

+8615863005192

Type and specification of Hot-rolled section steel for track shoes

Since 2011, Shandong Steel (山钢) has been engaged in the research and development of crawler track steel, successively developing 4 types of steel, 6 major series, and 31 specifications of products, achieving the production of a full range of products from 135 to 317 sizes. Crawler track steel is primarily used in the chassis components of crawler tractors, bulldozers, excavators, and pavers, among other construction machinery, and has been widely applied in leading enterprises in China's construction machinery manufacturing industry, such as Shantui, XCMG, Sany, and Longking.
The 317 specification crawler track steel, as the largest single-tooth crawler track steel product, is a necessary material for ultra-large tonnage construction machinery. Previously, only one European company was capable of producing this product, holding a global monopoly. Shandong Steel has broken this foreign monopoly, addressing the long-standing issue of China's reliance on imported materials. This achievement not only strengthens the domestic supply chain but also contributes to the independence and self-reliance of China's construction machinery sector.

Track steel

PRODUCT PARAMETERS
Hot-rolled Track Shoes For Excavator
Type	Section Area	Mass/Unit Length (kg/m)
Type	cm2	Mass/Unit Length (kg/m)
L3W135×6×14	13.72	10.8
L3W154×6×20	17.86	14
L3W171×7×19	21.83	17.1
L3W171×8×19	23.7	18.6
L3U171×9×20	25.75	20.2
L3W171.5×9.5×20	27.1	21.3
L3V175×8×25	29.38	23.1
L3V175×9.5×25	32.09	25.2
L3S190×8×26	30.64	24.1
L3S190×8.5×26	31.71	24.9
L3S190×10×26	34.39	27
L3S190×10×26a	34.39	27
DB190-10	35.03	27.5
DB190-12	39.41	30.9
L3S216×11×36	50.85	39.9
L3S216×13×36	55.76	43.8
L3S216×13×36a	55.76	43.8
L3W216×11×30	46.54	36.5
L3W216×14×30	52.11	40.1
L3W216×16×36	61.96	48.6
DB216-13	54.55	42.8

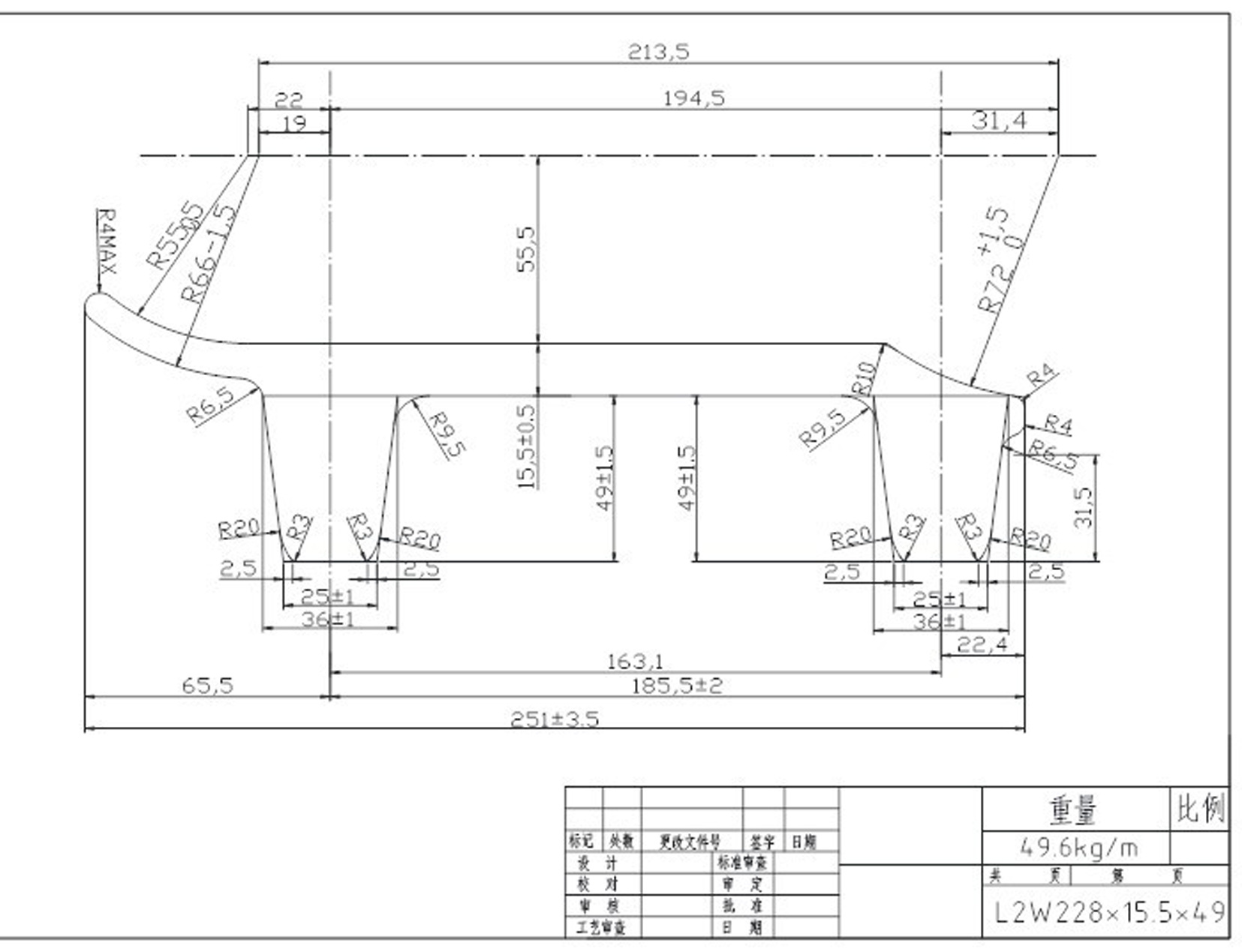

L2W228×15.5×49	63.14	49.6

Notes:

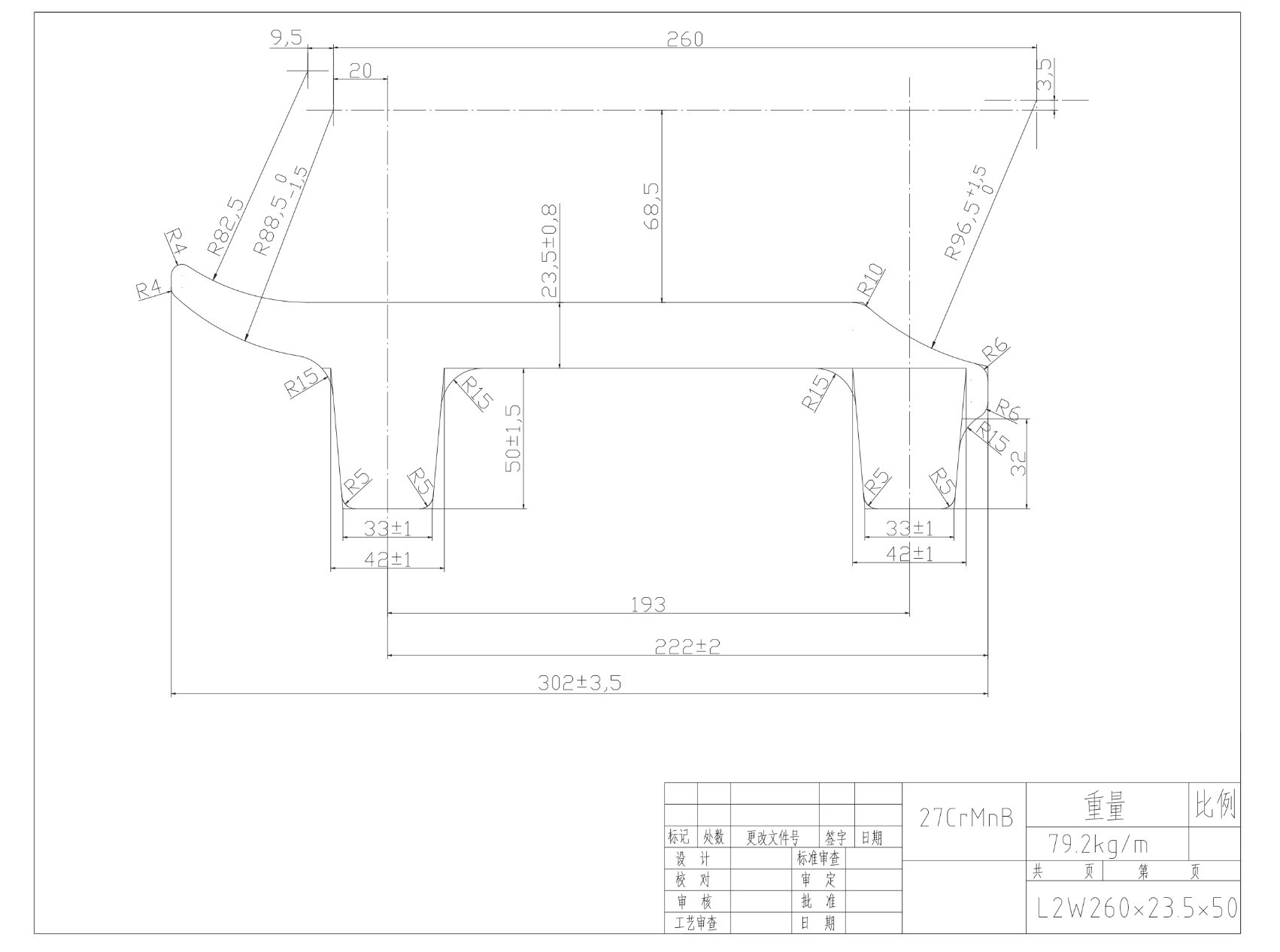

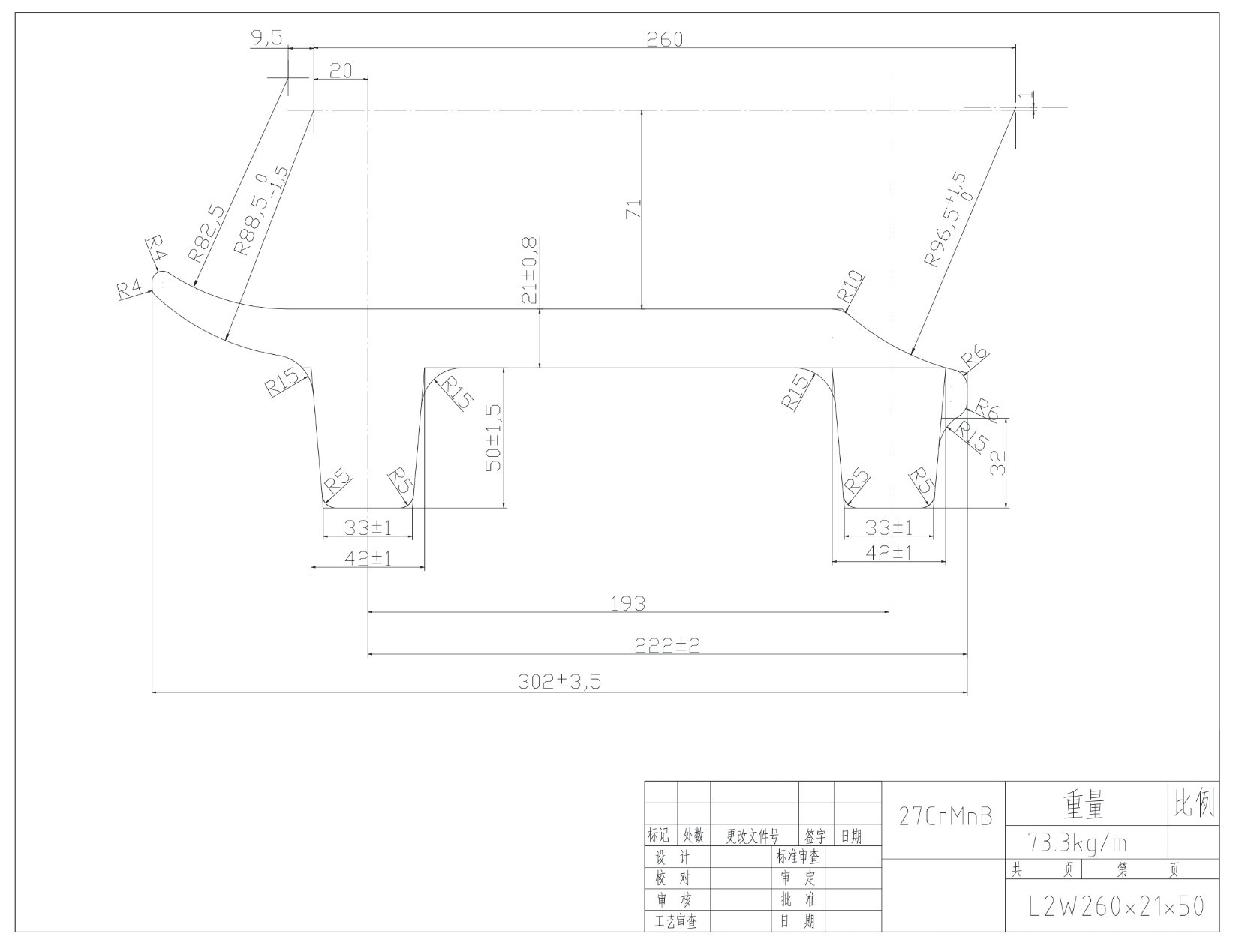

The table above is tolerances of normal track shoes.In actual manufacture,tolerances are controlled according to the tolerances annotated in the drawings of all specifications in the appendix.Please inquire us for special requirements of thinckness.

FACTORY

The company's main products include various specifications of section steel, gantry channel steel, track steel, etc., which are widely used in construction, machinery manufacturing, shipbuilding and other fields. The product quality is stable and reliable, receiving high praise from customers.

CASE

In the market competition, the company is based on integrity, actively exploring domestic and foreign markets, and has won the trust and support of a large number of customers.

PACKING AND SHIPPING

The company has advanced production equipment and a technical team, focusing on product quality and brand building. Accumulate a large amount of goods year-round to ensure timely and stable supply. The company's products are exported to dozens of countries and regions such as Southeast Asia, Africa, the Middle East, Central Asia, Europe, and the Americas, and are highly praised by customers.

FAQ

Is it possible to customize steel structures with special shapes?

Yes, we can customize various special shaped steel structures according to customer requirements to meet the needs of different projects.

Are we a factory or a trader?

We are a factory specializing in the production of H-shaped steel, track steel, door frame channel steel, and steel structures, with excellent quality and sufficient supply of goods

Can we specify the freight and port？

Yes, and send the designated freight and port according to customer requirements

Is after-sales service provided?

Yes, we provide after-sales maintenance and consulting services for steel structures to ensure that our clients' projects can operate stably in the long term.

How to ensure the quality of steel structures?

We strictly follow national standards and industry norms in our design and manufacturing to ensure the quality and safety of steel structures.

What are the advantages of profile steel structures?

Profile steel structures have advantages such as light weight, high strength, fast construction speed, and strong durability, which can meet various building needs.

What are our products?

Our products include various profile steel structures, track steel, gantry channel steel, such as beams, columns, trusses, etc., widely used in industrial plants, storage facilities, commercial buildings and other fields.

What does our service include?

Our services include steel structure design, manufacturing, and after-sales service. We have a professional design team and after-sales team, which can provide customers with one-stop solutions.
